S1Built, LLC.

5/8" Chromoly Rod End Heim Joint

Regular price $17.95 USD
Regular price Sale price $17.95 USD
Sale Sold out
Shipping calculated at checkout.

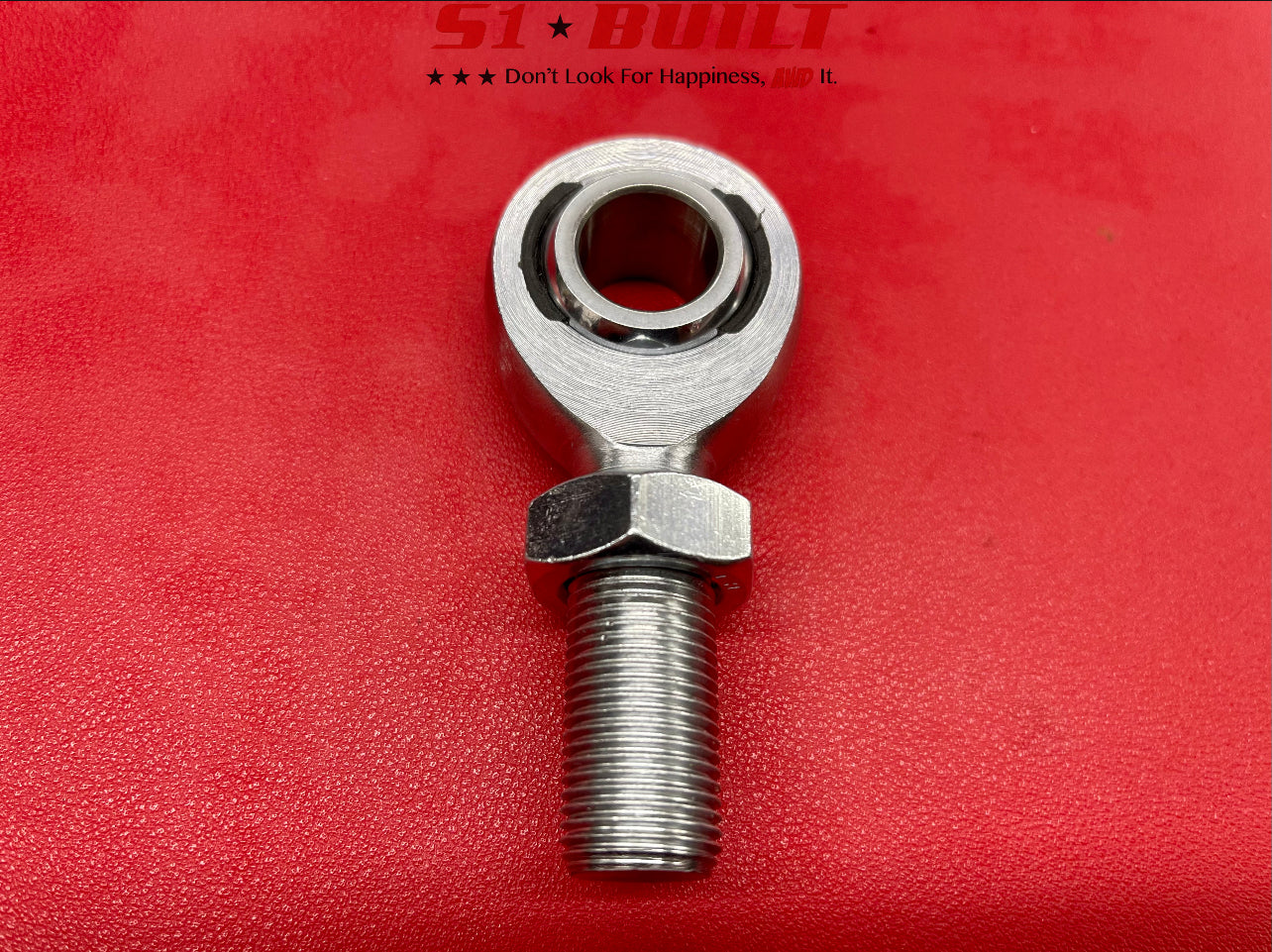

Our 5/8" Chromoly Rod End Heim Joint. Comes as shown in photos(nut included). Price is per piece. Available in Left-hand and Right-hand threads.

Material: 4130 Chromoly Steel
Thread Size: 5/8"-18
Ball Bore: .625"
Ball Width: .750"
Centerline Length: 2.625"
Thread Length: 1.625"
Load Capacity: 17,995lbs

Jam Nut
Thread: 5/8"-18
Width: Max 0.938"-Min 0.922"
Height: Max 0.387"-Min 0.363"

Supply chain disruptions may cause unpredictable lead times.

Our products are made for Off-road use only. Our product's full potential is based entirely upon proper installation. Made in the USA. All sales are final.
